Color Dopplers & Ultrasound

Model - MM CD 100

Ultrasound Scanning Machine (Trolley Based)

The MM CD 100 is an advanced trolley-based ultrasound system designed for high-quality imaging, smooth workflow, and reliability in hospitals, clinics, and diagnostic centers.

Ultrasound

Key Features

🖥️

User Interface & Display

  • 14" touch screen (1920 × 1080 resolution)
  • 20° tiltable touch screen and display
  • Gesture-control support
  • 5 user-defined touch screen keys
  • Adjustable brightness
  • Touch screen configurable user-configurable UI
  • Supports Chinese & English QWERTY and French AZERTY keyboards
  • Retractable physical keyboard with targeted down-lighting
🔧

Mobility & Ergonomic Design

  • Front and rear handles for easy mobility
  • Articulating arm for flexible positioning
  • Rear storage tray
  • Control panel with electronic lift (20 cm)
  • ±90° left/right swivel control panel
  • Display monitor with ±180° swivel
  • Tiltable display monitor
  • Interactive back-lighting
⚡

Workflow & User Assistance

  • eLearn instruction tool for basic scanning and nerve blocks
  • High-performance integrated audio speaker
  • 6 transducer holders integrated with thecontrol panel
  • 5 active transducer ports
  • Programmable store keys
  • Probe temperature monitoring (PAT & TIP)
  • Plastic and rubber hard keys provide tactile feedback
  • Physical trackball for precise control
🎮

Control Panel & Operation

  • 8-segment physical TGC sliders
  • Electronic lift up/down: 20 cm
  • Left/right swivel: ±90°
  • Interactive back-lighting
  • Programmable store keys
  • Physical hard keys with tactile feedback
  • Retractable keyboard with targeted down-lighting
  • Resettable over-current breaker for voltage protection
📷

Imaging Modes

  • B-mode
  • M-mode
  • Anatomic M-mode (1/2/3-line AMM and Curved AMM)
  • Color M mode
  • Color Doppler
  • Velocity-based Color Doppler
  • PDI (Power Doppler Imaging)
  • DPDI (Directional Power Doppler Imaging)
💻

System Performance & Hardware

  • Physical Channels: 128
  • Digital Channels: 5529600
  • Gray Scale: 256
  • Beam Forming Processor: 8 beams
  • Hard Drive: i5 with 6 cores 32GB
  • Operating System: 1TB SSD 64 bit Linux
  • System Boot-up: About 50s
  • Boot-up from Sleep: About 3s
  • Shutdown: 18s

Related Products

Related 0

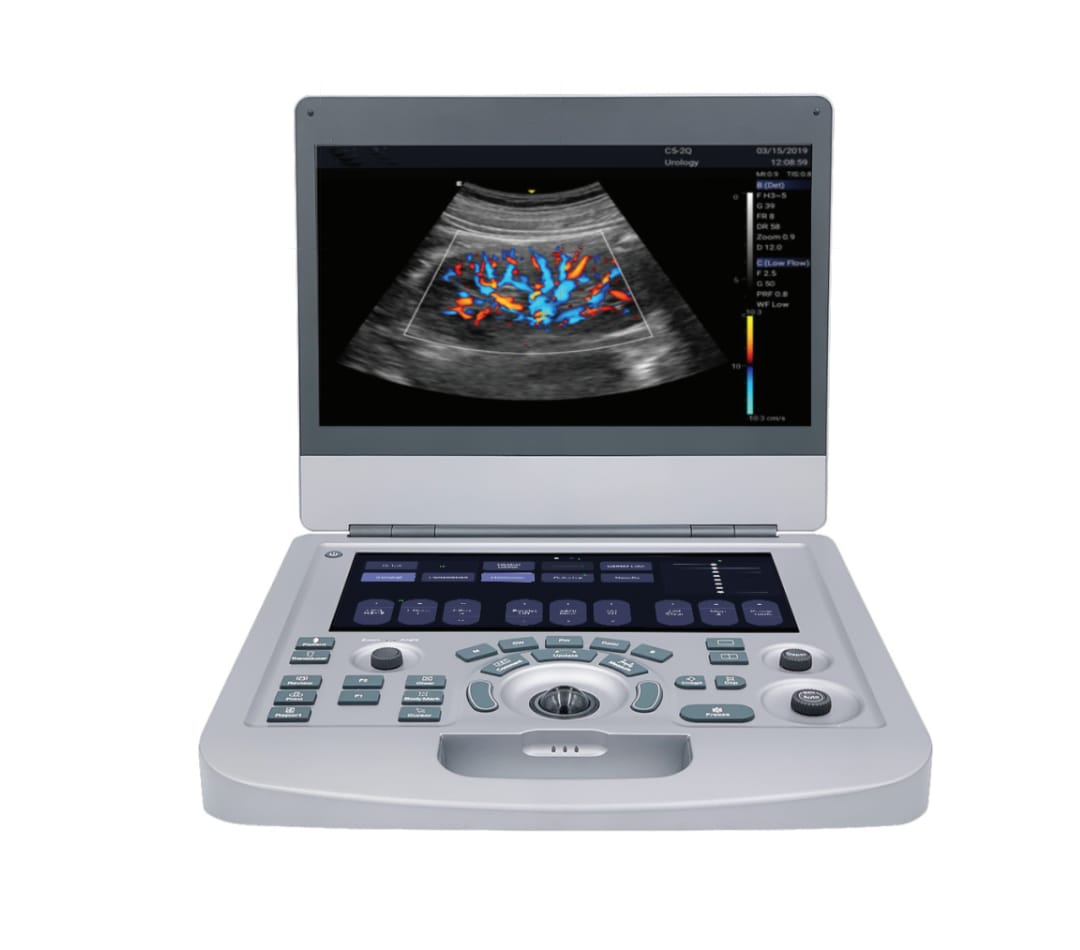

Model - MM CD 200
